Hydraulic disc brakes

For Spring 2023 Clarks Cycle Systems have launched a new range of brake sets, under their new brand CRS - Clarks Race Series

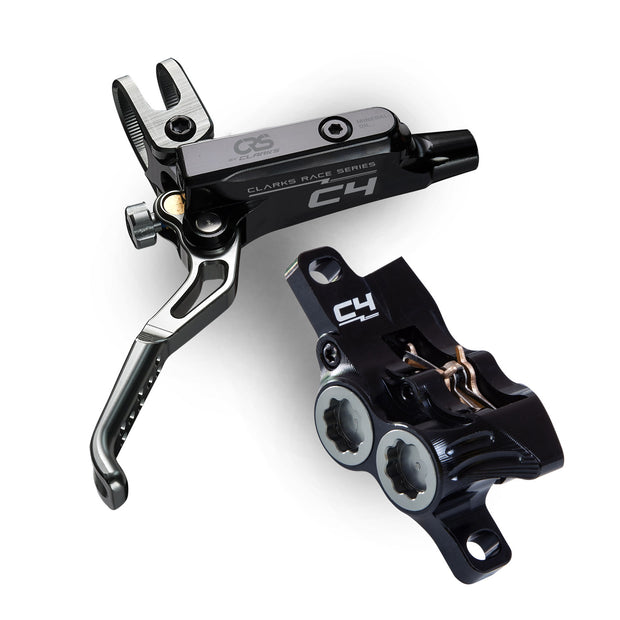

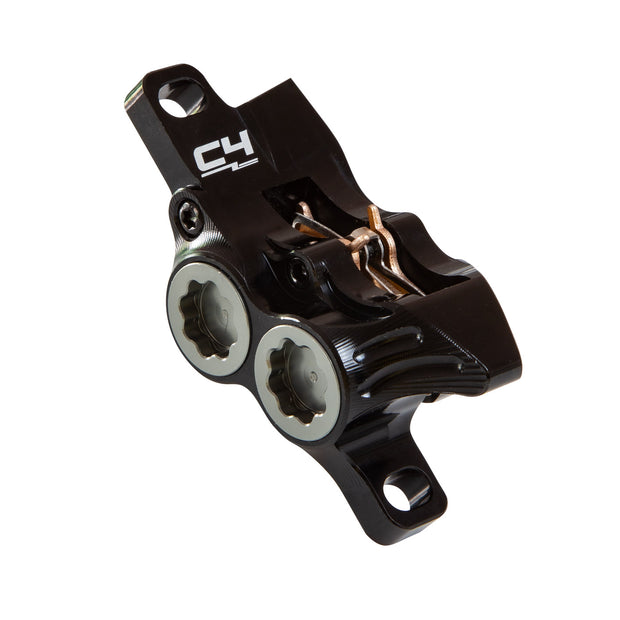

The CRS C4 is a 4 piston hydraulic disc brake which provides the rider with a competition level brake set, featuring full adjustment and modulation. Each calliper has 4 x 16mm stainless steel self-adjusting pistons with machined piston heads for reduced friction operation. Heat dissipation features designed into the single piece CNC calliper, keep braking performance consistent and in-turn help to reduce pad wear. Lightweight 2 finger brake levers with ergonomic vented lever blades, offer controlled, sensitive braking by using an ‘on the fly’ lever reach adjustment screw. The C4  is supplied with aerospace grade aluminium floating rotors with stainless steel braking bands, hoses and mineral oil.

CRS C4 Specification:

• 4 Piston hydraulic brake system
• Suitable for MTB, downhill and e-bikes
• Rigid single piece CNC’d calliper
• Disc pad cooling fins
• High quality anodised black and gunmetal finish
• 4 x 16mm Self adjusting pistons

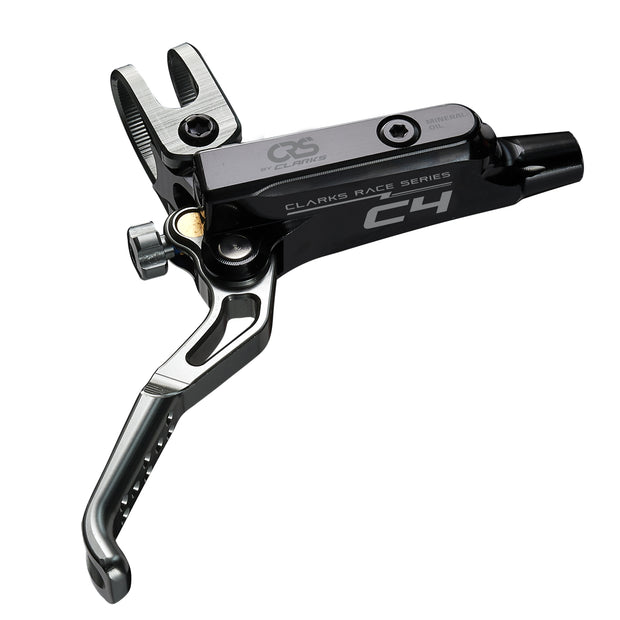

• 2 Finger vented ergonomic lever

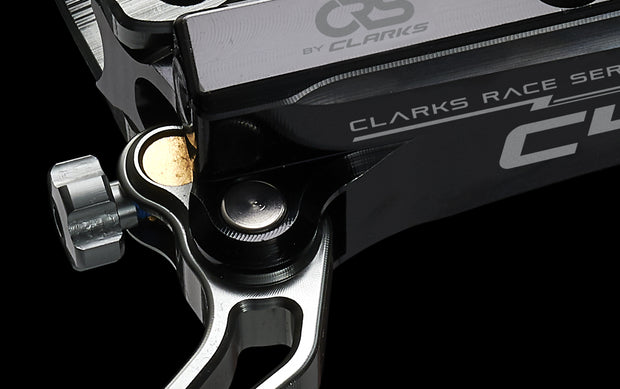

• On the fly’ lever reach adjustment
• Mineral oil fluid to protect the environment

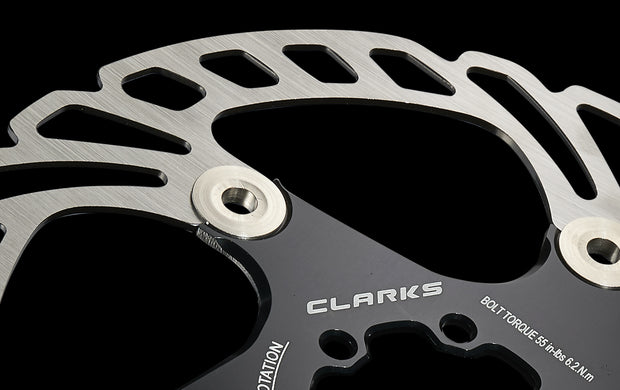

• Floating CNC stainless steel rotors with aluminium carriers
• Weight - 236g

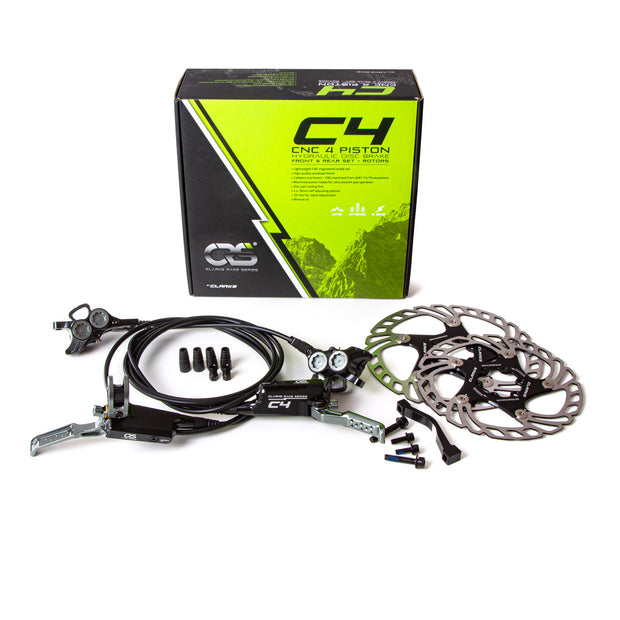

Box Contents

• 1 x front lever and calliper
• 1 x Rear lever and calliper
• Hoses connected and pre-filled with mineral oil and pre-bled
• 1 x 180mm front rotor, 1 x 160mm rear rotor and torx head bolts
• 1 x 180mm front Post Mount calliper bracket and fitting bolts
• Spare olives and inserts for hose reduction or repair
• Finned semi-metallic pads (VRX801)
• Fitting and bleed instructions

CRS.bike - official website

CRS C4 complies and exceeds EN 15194 regulations

Replacement disc pads (VRX801-FINNED)

For Spring 2023 Clarks Cycle Systems have launched a new range of brake sets, under their new brand CRS - Clarks Race Series

The CRS C2  is a 2 piston hydraulic disc brake which provides the rider with a powerful, strong brake set, featuring full adjustment and modulation. Each calliper has self-adjusting pistons with machined piston heads for reduced friction operation. Heat dissipation features designed into the rotor, work in conjunction with the calliper, to keep braking performance consistent and in-turn help to reduce pad wear. Lightweight 2 finger brake levers offer controlled, sensitive braking with lever reach adjustment and comfortable ergonomic lever blades. The C2  is supplied with aerospace grade aluminium floating rotors with stainless steel braking bands, hoses and mineral oil.

CRS C2 Specification:

• 2 Piston hydraulic brake system
• Suitable for MTB, downhill and e-bikes
• Rigid single piece CNC’d calliper
• High quality anodised black and gunmetal finish
• 2 x 22mm Self adjusting pistons2 Finger ergonomic lever
• Lever reach adjustment
• Mineral oil fluid to protect the environment
• Floating CNC stainless steel rotors with aluminium carriers
• Weight - 218g

Box Contents

• 1 x front lever and calliper
• 1 x Rear lever and calliper
• Hoses connected and pre-filled with mineral oil and pre-bled
• 1 x 160mm front rotor, 1 x 160mm rear rotor and torx head bolts
• Spare olives and inserts for hose reduction or repair
• Finned semi-metallic pads (VRX852)
• Fitting and bleed instructions

CRS.bike - official company website

CRS  C2 Complies and exceeds EN 15194 regulations

The Clarks M4 (2022 version) is their most powerful brake produced to date. Featuring the revised calliper design with 4 pistons per calliper, it applies more braking force to the rotor than any other Clarks M range of hydraulic brakes. Designed to meet the demands of downhill riders and e-bike riders and commuters who need more stopping power from their brakes. The M4 has a 2 finger ergonomic lever blade with reach adjustment, forged alloy callipers and uses mineral oil fluid.

Features:

• Lightweight hydraulic disc brake set
• Revised calliper design
• Self adjusting 16mm pistons
• Powerful 4 Piston hydraulic brake calliper

• Mineral oil fluid

• Post mount calliper & international standard compatible
• 2 Finger lever with reach adjustment

• 180mm front rotor, 160mm rear rotor
• 180 post mount bracket included

• Weight 242g (rear calliper and lever)

• Approved to BEN 15194 regulations

This set comes with the hoses connected, filled with mineral fluid and pre-bled. All ready to fit straight onto your bike. It also includes all the bolts and fittings you will need, as well as 2 spare olives should you wish to reduce or replace the hoses.

Front hose length is 800mm and Rear hose length is 1800mm.
This is a UK specification set, front brake/right hand lever, rear brake/left hand lever.

We deliver all our brake sets as standard, using the Royal Mail first class signed for delivery service.

Replacement rotor (CL-160)
Replacement disc pads (VRX851)

Improved version with upgraded rotors - the 2024 set is supplied with rotors that are stronger and tested to a higher standard for use with higher powered e-bikes.

The CLOUT1  hydraulic brake system has the capability of a much higher end brake in the market, providing the rider with greater power, consistency and feel, all at a price that is designed to compete with entry level bikes. CLOUT1 maintains superb quality and reliability even at this lower price point. The CLOUT1 mineral oil brake features a 2 piston calliper and small well designed lever assembly with reach adjustment.

All brakes are supplied with rotors, bolts, hoses (fitted) and pads.

Features:

• Lightweight brake system with stainless steel rotors
• 2 piston hydraulic brake
• International standard and Post mount fit
• Mineral oil fluid
• Lever reach adjustment
• Available with 160/160mm or 180/160mm rotors
• Weight - 419g
• Approved to and exceeds BS EN 14766-2005 and ISO4210

This set comes with the hoses connected, filled with mineral fluid and pre-bled. All ready to fit straight onto your bike. It also includes all the bolts and fittings you will need, as well as 2 spare olives should you wish to reduce or replace the hoses.

Front hose length is 800mm and Rear hose length is 1800mm.
This is a UK specification set, front brake/right hand lever, rear brake/left hand lever.

We deliver all our brake sets as standard, using 3/4 day tracked delivery service.

Replacement rotor (CL027-160 / 180)
Replacement disc pads (VRX811)

We have a 180mm rotor and front calliper upgrade set available for 160/160 sets- visit our shop for more information.

The award winning M2 has been designed specifically for the cycle enthusiast. ideal for MTB, Electric and Hybrid Bikes. It brings high level performance and braking power to the MTB and hybrid rider, at an entry level price. The twin piston callipers of the M2 deliver superb braking performance in all weather conditions. Supported by a sleek and compact lever design, this braking system will provide exceptional reliability and consistent performance.

Features:

• Lightweight award winning hydraulic disc brake set
• 2 Piston hydraulic brake calliper

• Mineral oil fluid

• Post mount calliper & international standard compatible
• Lever reach adjustment

• Weight 388g

• Approved to BS EN 14766-2005 and ISO4210

This set comes with the hoses connected, filled with mineral fluid and pre-bled. All ready to fit straight onto your bike. It also includes all the bolts and fittings you will need, as well as 2 spare olives should you wish to reduce or replace the hoses.

Front hose length is 700mm and Rear hose length is 1800mm.
This is a UK specification set, front brake/right hand lever, rear brake/left hand lever.

We deliver all our brake sets as standard, on a 2/3 day delivery service.

Replacement rotor (CL-160)
Replacement disc pads (VRX852 or VRX811)

Please note check the serial number found on the inside of the lever blade. Serial Letter 'L' uses a VX/VRX852, Serial letter 'O' uses a VX/VRX811 pad.

We have a 180mm rotor and front calliper upgrade set available for 160/160 sets- visit our shop for more information.

Please note the M2's do not come with an automatic motor shut off sensor

The M3, delivers superior looks with an alloy cast radial style lever. Clarks have engineered out a large amount of weight from the brake system as well as drastically improving the overall aesthetics. The radial design lever increases the room available on the handlebar so creating a cleaner look on the bike. Calliper weight and aesthetics have also benefited from alloy casting as well as the systems ability to deal with heat build-up. The M3 uses 2 pistons per calliper, and with a large internal fluid capacity braking power is improved by 25% compared with the M2. The M3 will to appeal to many riders from leisure cyclists to the dedicated downhill rider.

Features:

• Radial style Flip Flop lever design
• Cast alloy lightweight design
• Removable handle bar clamp
• Lever reach adjustment
• High quality anodised finish
• One piece calliper design
• Mineral Fluid
• PM and IS compatible
• Weight - 224g

• Approved to BS EN 14766-2005 and ISO4210

Replacement rotor (Clarks CL-160)
Replacement disc pads (Clarks VRX852)

This set comes with the hoses connected, filled with mineral fluid and pre-bled. All ready to fit straight onto your bike. It also includes all the bolts and fittings you will need, as well as 2 spare olives should you wish to reduce or replace the hoses.

Front hose length is 700mm and Rear hose length is 1800mm.
This is a UK specification set, front brake/right hand lever, rear brake/left hand lever.

We deliver all our brake sets as standard, using the Royal Mail first class signed for delivery service.

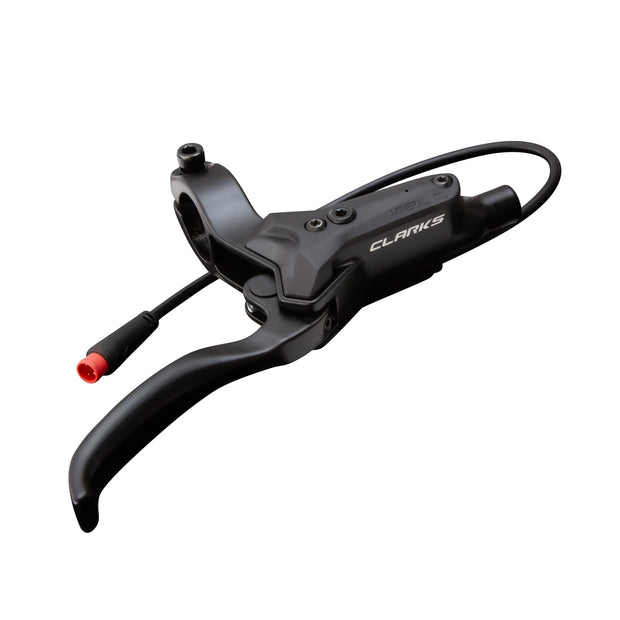

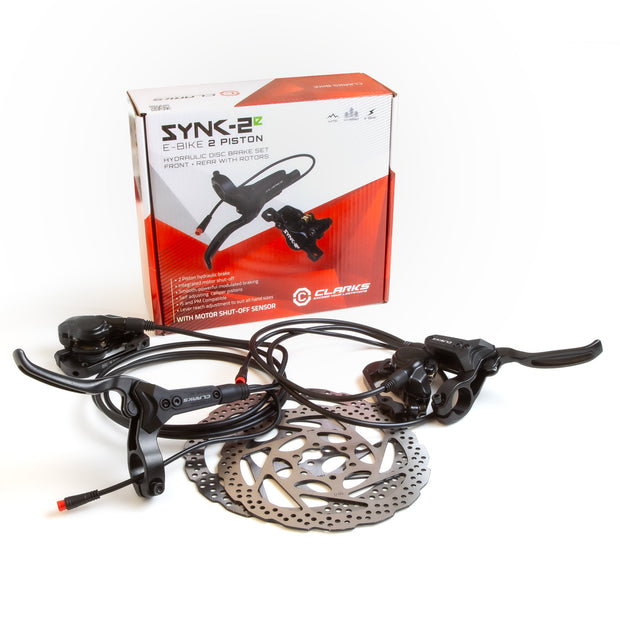

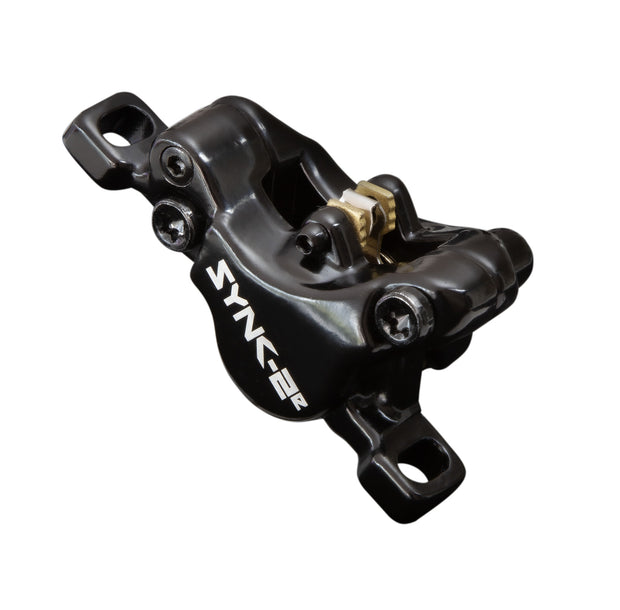

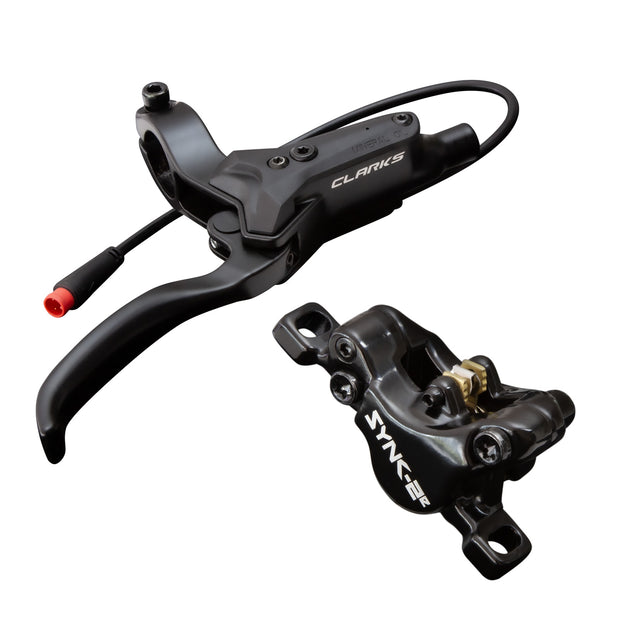

Dual Pistons - Open Hydraulic System E brake for Electric bikes, with sensor control design cutting line. Designed for use on 45km/hr E-bikes, it consists of a 2 piece forged calliper allowing internal maintenance, the brake is specifically designed for use with E-bikes and has an automatic motor shut off when the brake lever is applied resulting in safe braking. Sensor Control waterproof contact, 3 fingers lever length.

Features;
• Designed for use on 45km/hr E-bikes
• 180mm Front and 160mm rear rotors braking under load
• Lightweight 2 piston hydraulic brake system
• Motor shut off sensor to give greater control
• Fitted with motor cut off. Juliet Male 8 (2 pin) connector
• 3/4 Finger lever
• Lever reach adjustment to suit all hand sizes
• Post mount fit
• Mineral oil fluid to protect the environment
• Stainless steel rotors
• Spare olives to allow for hose reduction
• Weight - 320g

Complies with and exceeds EN15194 and ISO4210 regulation

This set comes with the hoses connected, filled with mineral fluid and pre-bled. All ready to fit straight onto your bike. It also includes all the bolts and fittings you will need, as well as 2 spare olives should you wish to reduce or replace the hoses.

Front hose length is 800mm and Rear hose length is 1800mm.
This is a UK specification set, front brake/right hand lever, rear brake/left hand lever.

We deliver all our brake sets as standard, using 3/4 day tracked delivery service.

Replacement rotor (CL027-160 / 180)
Replacement disc pads (VRX811)
